Resistance Seam Welding Machine Air Duct Straight Seam Welding Machine
| Welding diameter | Ø100~Ø1000mm |
| Types of Welded Sheets | Tin Plated Sheet Galvanized sheet steel Low carbon sheet steel Stainless steel sheet |
| Weld thickness | Low carbon sheet steel:0.3~1.0mm |
| | Galvanized sheet steel:0.3~1.0mm |
| | Stainless steel sheet:0.3~1.0mm |
| | Tin Plated Sheet:0.3~1.0mm |
| Welding height | 1000mm/1250mm |
| Welding speed | 3~9m/min |
| Overlap | 6mm |
| Welding copper wire diameter | Ø2.0mm |
| Cooling water flow rate | 0.4Mpa 8.5L/min |
| Compressed air | 0.8Mpa 600L/min ≤25°C |
| Welding power | 100KVA |
| Net weight | 1.3T |
Resistance Seam Welding Machine Air Duct Straight Seam Welding Machine
- Air Duct Straight Seam Welding Machine
- Resistance welding
-
Seam welding
- Air duct weiding
- Sheet metal welding
-
Duct welder
-
Vanitation pipe
Product of Resistance Seam Welding Machine Air Duct Straight Seam Welding Machine

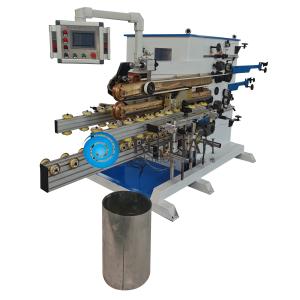

Air Duct Straight Seam Welding Machine
RFA-100B air duct straight seam welder is a straight seam welder developed by Ruilian Electric for industrial air ducts and thick-walled steel drums. It is equipped with the exclusive function of intermediate frequency welding current output. The 3-dimensional welding auxiliary protective gear adopts electric adjustment, sliding and holding the positioning, which fulfills the welding requirements of heavy air ducts and thick-walled steel drums to the greatest extent.And with our company's 800Z series wide plate rolling machine, the unique performance of RFA-100A welding machine can be maximized. The conductive electrode of the welding machine adopts Korean high-conductivity copper electrode material, which makes the heat conversion rate of the welding current more efficient.
The equipment man-machine interface control, welding control unit and other aspects are all independently developed and designed, including the welding pressure and other important welding elements to fully realize the digital display of the man-machine interface. And according to the welding characteristics of galvanized sheet steel, a unique welding curve is designed in welding control, so that the professional needs of galvanized sheet welding can be more reliably completed.
At the same time, the welding machine has the function of WIFI cloud, which can collect real-time data, interact and maintain remotely, so that it has the humanized function of remote professional management.
The excellent welding characteristics of RFA-100B air duct straight seam welding machine are used in aerospace vehicles, aircraft manufacturing, ventilation duct manufacturing, household appliances manufacturing and metal steel drums and other industries, especially for welding and processing low carbon sheet steel, galvanized sheet steel, The performance of stainless steel sheet and tin-plated sheet is particularly outstanding.
